Home >> AIWA >> VXS205 Service Manual

 0 item(s) in your cart

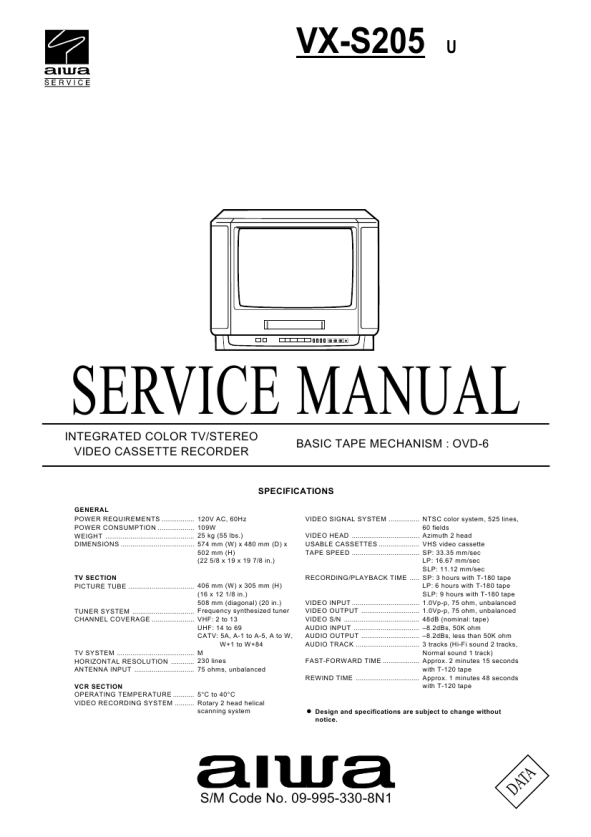

AIWA VXS205
Service Manual


Tweet about this product and get $1.00 of store credit for instant use!
  • Contains Circuit Diagrams
  • Download
  • PDF Format
  • Complete manual
  • Language: English
Price: $4.99

Description of AIWA VXS205 Service Manual

Complete service manual in digital format (PDF File). Service manuals usually contains circuit diagrams, printed circuit boards, repair tips, wiring diagrams, block diagrams and parts list. Service Manual ( sometimes called Repair Manual ) is used mainly by technicians.

If You just want to know how to use Your tv, video, mp3 player etc. You should look for Owner's Manual. After placing order we'll send You download instructions on Your email address.

The manual is available in languages: English

Not yet ready
You must purchase it first

Customer Reviews
There are currently no product reviews.
Other Reviews
 CV6040 DUAL Service Manual by Gerhard Crossman;
This is the original manufacturers service manual, with detailed info on the circit boards, explosion drawings of all parts in assembly order, and tuning instructions. The only thing missing is the information on the dimensions of the various drive belts. mail me if you need them. gcrossman_at_aol.com
 TH-37PR9U PANASONIC Service Manual by Dennis Jacin;
Ordered service manuel for a hard to find plasma tv - your company made it easy to find and purchase - I will use you again Thanks for your help
 TK3107 KENWOOD Service Manual by chang hws;
This is a high quality manual with clear schematic and components layout diagrams ; with service procedure included.
 KT990D KENWOOD Service Manual by Jon Jensen;
This service manual for the Kenwood KT-990D was reproduced really well ,is very legible and manual is complete.Combined with the low price paid,in the future,I will be checking Owner-Manuals.com any time I need a manual.
 LT-32DS6BJ JVC Service Manual by Joseph Gurling;
When I purchased this manual I had my doubts regarding the quality as the price was so reasonable as compared to other outlets. The manual itself is of high standard the print is very clear as are the diagrams. Obviously with the diagrams one has to zoom in otherwise it is to small to be able to read. Overall I am very pleased with the company who delivered as they said and with the manual they supplied. I occasionally require a manual and now having registered with this company I shall order from them in the future.

Text excerpt from page 28 (click to view)
ELECTRICAL ADJUSTMENTS
2-16: VERTICAL LINEALITY 1. Receive the monoscope pattern. 2. Using the remote control, set the brightness and contrast to normal position. 3. Activate the adjustment mode display of Fig. 1-1 and press the channel button (1) on the remote control. The Fig. 2-6 appears on the display. 4. Press the channel button (5) on the remote control. 5. Press the VOL. UP/DOWN button on the remote control until the SHIFT quantity of the OVER SCAN on upside and downside becomes minimum. 2-17: VERTICAL POSITION 1. Receive the color bar pattern. 2. Using the remote control, set the brightness and contrast to normal position. 3. Activate the adjustment mode display of Fig. 1-1 and press the channel button (1) on the remote control. The Fig. 2-6 appears on the display. 4. Press the channel button (4) on the remote control. 5. Press the VOL. UP/DOWN button on the remote control until the horizontal line of the color bar comes to approximate center of the CRT. 2-18: OSD HORIZONTAL 1. Receive the color bar pattern. 2. Using the remote control, set the brightness and contrast to normal position. 3. Activate the adjustment mode display of Fig. 1-1 and press the channel button (5) on the remote control. The Fig. 2-2 appears on the display. 4. Press the channel button (4) on the remote control. 5. Press the VOL. UP/DOWN on the remote control until the difference of A and B becomes minimum. (Refer to Fig. 2-7)

"A" 2-13: SUB TINT (AV)

Fig. 2-5

1. Receive the color bar pattern. (Audio Video Input) 2. Connect the synchro scope to TP803. 3. Using the remote control, set the brightness, contrast, color and tint to normal position. 4. Activate the adjustment mode display of Fig. 1-1 and press the channel button (4) on the remote control. The Fig. 2-3 appears on the display. 5. Press the channel button (4) on the remote control. 6. Press the VOL. UP/DOWN button on the remote control until the section "A" becomes a straight line. (Refer to Fig. 2-5) 2-14: HORIZONTAL PHASE 1. Receive the monoscope pattern. 2. Using the remote control, set the brightness and contrast to normal position. 3. Activate the adjustment mode display of Fig. 1-1 and press the channel button (1) on the remote control. The Fig. 2-6 appears on the display. 4. Press the channel button (1) on the remote control. 5. Press the VOL. UP/DOWN button on the remote control until the SHIFT quantity of the OVER SCAN on right and left becomes minimum. 1. H. PHASE 2. H. BLK 3. V. SIZE 4. V. POSI 5. V. LIN 6. V. SC 7. V. COMP 8. (H FREQ) 0. RETURN "The adjustment items 2, 6, 7 and 8 are not used for this model." Fig. 2-6 2-15: VERTICAL SIZE 1. Receive the monoscope pattern. 2. Using the remote control, set the brightness and contrast to normal position. 3. Activate the adjustment mode display of Fig. 2-1 and press the channel button (1) on the remote control. The Fig. 2-6 appears on the display. 4. Press the channel button (3) on the remote control. 5. Press the VOL. UP/DOWN button on the remote control until the horizontal over scan is equal to the vertical over scan.

[ TV ]

OSD H A B Fig. 2-7

D2-3
