CASIO W753-2A
Owner's Manual

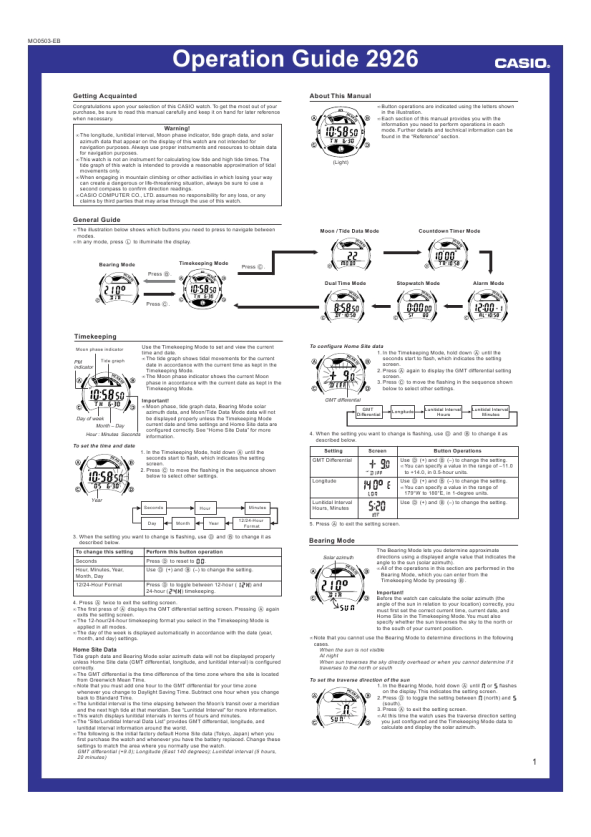

Operation Guide 2926
To determine your bearings 1. Enter the Bearing Mode. � This displays the current solar azimuth value in accordance with the current Timekeeping Mode data (time, date, Home Site data). 2. Find the same value on the bezel as the angle value displayed for the solar azimuth on the Bearing Mode screen. 3. Position the watch so the value you found in step 2 is pointing at the sun. 4. The 12 o�clock position of the watch should now be pointed north.
Bezel North

Countdown Timer Beeper Operations
The watch beeps at various times during a countdown so you can keep informed about the countdown status without looking at the display. The following describes the types of beeper operations the watch performs during a countdown. Countdown End Beeper The watch beeps each second of the final 10 seconds before a countdown reaches zero, and at zero. The first five beeps (seconds 10 through 6) are higher pitched than the final five beeps (seconds 5 through 1). The watch emits a longer beep to signal when the countdown reaches zero. � The countdown end beeper always sounds, regardless of the on/off status of the progress beeper. Progress Beeper The progress beeper actually includes two beepers: a reset time beeper and a reset period progress beeper. � The reset time beeper and reset period progress beeper sound only while the progress beeper is turned on. Reset Time Beeper The reset time beeper is similar to the countdown end beeper. When the progress beeper is turned on, the watch beeps each second of the final 10 seconds before the countdown reaches the reset time. Reset Period Progress Beeper The reset period is the portion of the countdown between the reset time and zero. When the progress beeper is turned on, the watch emits four short beeps at the top of each minute during the reset period, and 30 seconds before the end of the countdown.

�

� Note that the bearings produced by the Bearing Mode are intended for general reference only.

�

Moon/Tide Data
Moon phase indicator Tide graph

Moon age

Moon/tide data lets you view the Moon age and Moon phase for a particular date, and tidal movements for a particular date and time for the Home Site. � If you suspect that the Moon/tide data is not correct for some reason, check the Timekeeping Mode data (current time, date, and Home Site settings), and make changes as required. � See �Moon Phase Indicator� for information about the Moon phase indicator and �Tide Graph� for information about the tide graph. � All of the operations in this section are performed in the Moon/Tide Data Mode, which you enter by pressing C.

Countdown Timer Examples
Countdown start time: 10 minutes; Reset time: 5 minutes; Timer mode: Auto-repeat; Progress beeper: On Reset Period
Start Time Reset Time 4'00"
Reset Period Progress Beeper

Countdown End Beeper

Each press of A in the Moon/Tide Data Mode toggles between the Moon Data screen and the Tide Data screen. Moon Data Screen
Moon phase indicator

| |

Moon/Tide Data Screens

10'00" 5'00" Reset Time Beeper

3'00"

2'00"

1'00" 0'30" 0'00"

Tide Data Screen
Tide gragh

Countdown start time: 10 minutes; Reset time: 5 minutes; Timer mode: Elapsed time; Progress beeper: Off
Start Time Reset Time
|

| |

Press A.
Time

10'00"

| |

Moon age

Elapsed time measurement Countdown End Beeper
0'00"

5'00"

Year Month � Day

Timekeeping Mode.

To view the Moon data for a particular date While the Moon Data screen is displayed in the Moon/Tide Data Mode, use D (+) and B (�) to display the date whose Moon data you want to view. � You can select any date from 2000 to 2039. To view tide data for a particular time 1. While the Moon Data screen is displayed in the Moon/Tide Data Mode, use D (+) and B (�) to display the date whose tide data you want to view. 2. Press A to switch to the Tide Data screen. � The initial screen shows the tide graph for 6:00 AM. 3. Specify the time for which you want to display tide data. � Use D (+) and B (�) to change the time in one-hour steps.

3. When the setting you want to change is flashing, use D and B to change it as described below. Setting Screen Button Operations Start Time Use D (+) and B (�) to change the setting. � You can set a start time in the range of 1 to 60 minutes in 1-minute increments. Use D (+) and B (�) to change the setting. � You can set a reset time in the range of 1 to 5 minutes in 1-minute increments.
|| ||

Countdown Timer
Minutes Seconds

Timekeeping Mode time

Countdown Timer Mode, which you enter by pressing C.

Progress Beeper

Configuring Countdown Timer Settings
The following are the settings you should configure before actually using the countdown timer. Countdown start time and reset time Timer mode (auto-repeat, elapsed time) Progress beeper on/off � See �To configure countdown timer settings� for information about setting up the timer. Reset Time You can set a �reset time,� which is a kind of alternate countdown start time you can recall with the press of a button any time a countdown operation is in progress. Timer Mode The countdown timer gives you a choice of two modes: auto-repeat and elapsed time. Auto-repeat Auto-repeat automatically restarts the countdown from the countdown start time whenever zero is reached. � Auto-repeat mode is best when timing the starts of match races. � Even if you start a countdown operation from the reset time, the countdown automatically restarts from the countdown start time whenever it reaches zero. � Auto repeat timing repeats up to seven times.

4. Press A to exit the setting screen. � The reset time setting must be less than the countdown start time setting.

To use the countdown timer In the Countdown Timer Mode, press D to start the countdown timer. � The countdown timer measurement operation continues even if you exit the Countdown Timer Mode.
� The table below describes button operations you can perform to control countdown operations. To do this: Stop the countdown operation Resume a stopped countdown operation Display the countdown start time Stop the countdown operation and display the reset time Start the countdown from the displayed reset time Do this: Press D. Press D again. While the countdown is stopped, press B. Press B. Press D.

Elapsed Time When the end of the countdown is reached in the elapsed time mode, the timer automatically switches to an elapsed time measurement operation. � The elapsed time mode is best when timing the speed of yachts during ocean races. � The elapsed time operation is performed in one-second increments up to 99 hours, 59 minutes, 59 seconds.

||||

The countdown timer can be set within a range of one minute to 60 minutes. An alarm sounds when the countdown reaches zero. The countdown timer has two modes: auto-repeat and elapsed time, and a progress beeper signals the progress of the countdown. All of this makes the countdown timer a valuable tool for timing the start of a yacht race. � All of the operations in this section are performed in the

Reset Time

Timer Mode

||||
|

� When you enter the Moon/Tide Data Mode, the data that appears first is the Moon data (Moon age and Moon phase indicator) for the current date as kept by the

To configure countdown timer settings 1. While the countdown start time is on the display in the Countdown Timer Mode, hold down A until the countdown start time setting starts to flash, which || | indicates the setting screen.
� If the countdown start time is not displayed, use the procedure under �To use the countdown timer� to display it. 2. Press C to move the flashing in the sequence shown below to select other settings.
Start Time
Reset Time
Timer Mode
Progress Beeper

Press D to toggle between the auto-repeat mode (ON) and the elapsed time mode (OFF). � An auto-repeat indicator ( ) appears when the autorepeat mode is selected. Press D to toggle progress beeper on (ON) and off (OFF). � A progress beeper indicator ( ) appears when this setting is turned on.
