Pin No.
190 191 192 193 194 195 196 197 198 199 200 201 202 203 204 205 206 207 208
Pin Name
PWMVREF PWM2VREF PDMVSS ADCVSS ADIN/IN0 TEZISLV TEZI TEI FEI RELEVEL RFRP_DC RFRP_AC RFRPSLV HRFZC ADCVDD SCO RFDTSLV RFIP RFIN
I/O
I I � � I I I I I I I I I I � O O I I
Description
A reference voltage input for PWM circuitry. A typical value of 2.0V. A reference voltage input for PWM circuitry. A typical value of 4.0V. Power for PDM circuitry. Ground pin for ADC circuitry. General A/D input / General digital input. (Not used) Tracking error zero crossing low pass input. Tracking error zero crossing input. Tracking error input. Focus error input. Sub-beam add input or RFRP low pass input. RF ripple detect input. RF ripple detect input (through AC-coupling). RFRP slice level input. High frequency RF ripple zero crossing. Power pin for ADC circuitry. Analog slicer current output. This pin is active when TRONS = 1. Otherwise, this pin is high impedance. RF data slicer level output. The positive input terminal of RF differential signal. The negative input terminal of RF differential signal.
IC, STI5519 Pin No.
1~3 4 5 6 7 8~9 10 11 12 13 14 15 16 17 18
Pin Name
PIO2-5 ~ PIO2-7 VDD3_3 VSS PIO3-0 SV1 PIO3-2 ~ PIO3-3 PIO3-4 TRAY-OUT LID-SW PIO3-7 VDD2_5 VSS XDATA XBCLK XPCLK
I/O
I/O � � I/O O I/O I/O O O I/O � � I I I Not used. +3.3V power supply. Ground. Not used. Voltage output for S1 terminal. Not used. Connected to pull-up resistor.
Description
Tray is out output. A logical low indicates the tray is out. Tray is in output. A logical low indicates the tray is in. Not used. +2.5V power supply. Ground. I2S data. (Not used) I2S bit clock. (Not used) I2S error flag DVD. (Not used)
� 39 �
 $4.99 XD-DV10 AIWA

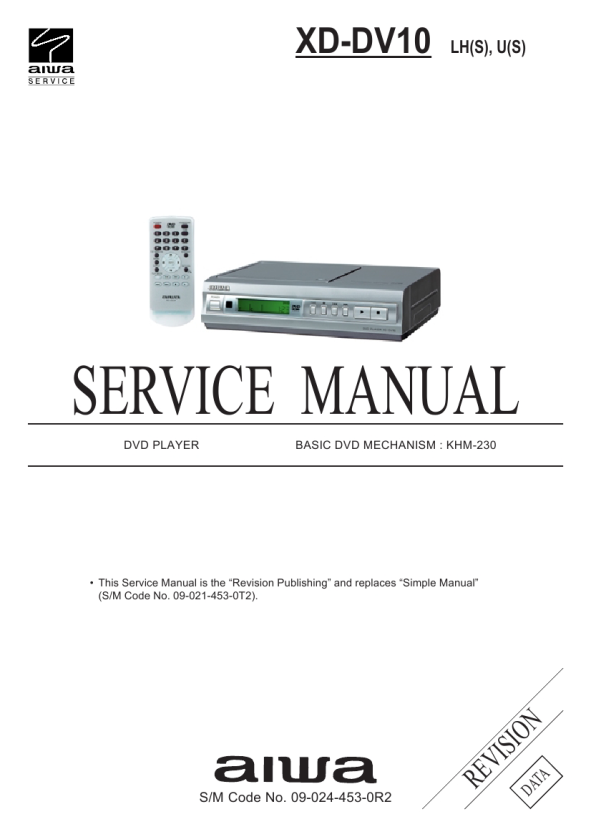

Owner's Manual Complete owner's manual in digital format. The manual will be available for download as PDF file aft…
|
|
|
> |
|
