E1
2
USING ON RECHARGEABLE BATTERIES � E
You can use on rechargeable batteries, which you charge using an AC adaptor. Rechargeable batteries and an AC adaptor are commercially available. � Be sure to use size AA Ni-Cd 1.2 V 700 mAh rechargeable batteries. � Be sure to use an AC adaptor whose rated output is DC 5 � 6 V, 250 � 300 mA. � Be sure to read instructions of the purchased AC adaptor and rechargeable batteries before use. � When using on rechargeable batteries for the first time, charge them until the battery indicator goes out. � Before charging the batteries, close the disc compartment. You cannot charge the batteries while it is opened. 1 Insert the rechargeable batteries with the 0 and 9 marks correctly aligned. 2 Connect the AC adaptor. 1 to DC 5 ~ 6 V jack 2 to a wall outlet 3 Keep sSTOP/OFF/CHARGE pressed for about 1 second to start charging. �C-On� appears, and the battery indicator blinks. When charging is completed, �C-OFF� flashes a few times, and the battery indicator goes out. After charging, disconnect the AC adaptor.
3
Time to recharge the batteries
Recharge the batteries when lights. If the unit remains in use after lights, �Lo-bAtt� appears and the current operation stops.
To stop charging
F
Press sSTOP/OFF/CHARGE during charging.
Force charging
When the recharging stops after only few minutes or the batteries cannot be fully recharged, press sSTOP/OFF/CHARGE while pressing PLAY MODE to start force charging.
ATTENTION:
The product you have purchased can be powered by nickel cadmium batteries which are recyclable. At the end of their useful life, under various state and local laws, it is illegal to dispose of these batteries into your municipal waste stream. Please call 1-800-289-2492 for information on how to recycle these batteries.
G
DSL
USING ON AC HOUSE CURRENT
Use only an AC adaptor whose rated output is DC 5 � 6 V, 250 � 300 mA. Connect the AC adaptor in the same way as when recharging the batteries. During operation on AC house current, all of the battery indicator disappears.
BEFORE PLAYBACK
HOLD switch � F
Release the HOLD switch before playback. � a When not using the unit, set the HOLD switch to the HOLD position. � b Accidentally pressed button will not function. If buttons are pressed when the HOLD switch is set to the HOLD position, �HOLd� flashes in the display.
Turning on and off � F
Turning the power on
H1
Press ePLAY/PAUSE. Power is turned on and playback starts.
Note
�Err� appears on the display when you play a disc placed upside-down or a defective disc.
Turning the power off
If no new operations are done within 30 seconds from the end of last operation, the power is turned off automatically. (Auto power off function) � You can turn off the power by pressing sSTOP/OFF/CHARGE before it is automatically turned off.
2
3
Standby mode � F
When an operation finishes, the unit goes into standby mode until the auto power off function automatically turns off the power. To enter standby mode, press ePLAY/PAUSE to start playback, then press sSTOP/OFF/CHARGE.
Adjusting the sound � G
Volume
Turn the VOL control to adjust the volume.
DSL
I
Press DSL repeatedly for more powerful sound and deeper bass. : Deep bass is emphasized. : Deep bass is strongly emphasized. : Normal sound

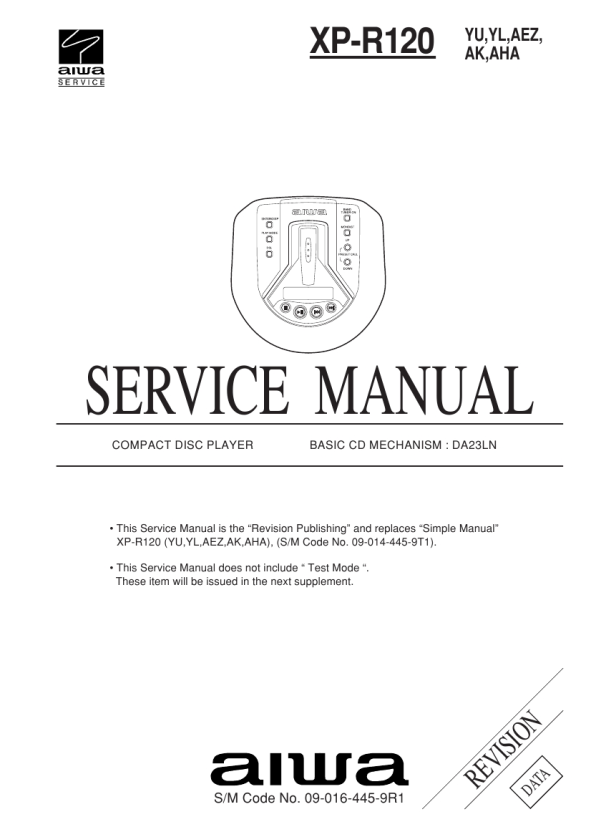

 $4.99 XPR120 AIWA
