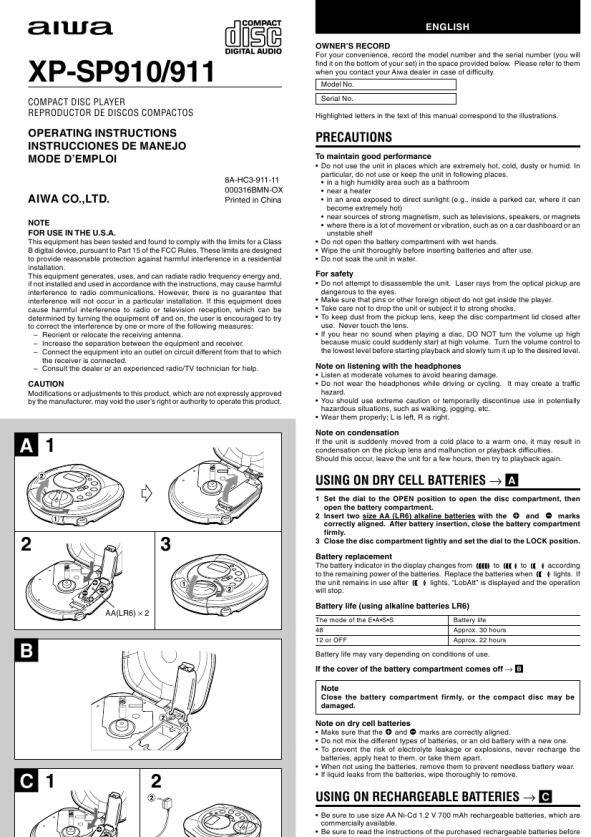

I
ENGLISH
PLAYBACK � I
Pull out the rubber cap and connect the supplied headphones to the PHONES/ LINE OUT jack. 1 Release HOLD. 2 Place a disc. 3 Press e PLAY/PAUSE. Playback starts from the first track. a track number b elapsed playing time c volume indicator
Basic operation
1
HOLD RESUME OFF
2
To stop
To pause To search for the beginning of a track To locate a desired passage
Press e PLAY/PAUSE. To resume, press it again. Press r or t.
Press sSTOP/OFF/CHARGE.
Keep r or t pressed. Release the button at the start of desired passage.
E�A�S�S PLUS (Electronic Anti-Shock System) � J
The E�A�S�S PLUS function reduces skipping or muting of the sound when the unit is subjected to shocks. The player keeps about 48 seconds or 12 seconds of playback sound in its memory. When you start playback, the unit keeps 48 seconds in memory. To keep 12 seconds in the memory, press E�A�S�S repeatedly until and appear. To cancel the E�A�S�S PLUS function, press E�A�S�S repeatedly until E�A�S�S appears.
3
PLAY/ PAUSE
Note
� Before jogging with this unit, allow sufficient time for the memory buffer to fill up completely (ideally 40 to 48 seconds). Continuous shock or vibration may cause the sound to be interrupted even if the E�A�S�S PLUS function is activated. This is normal and not a malfunction. Should you experience an interruption in sound, stabilize the unit for a few seconds, then resume your activity. � When E�A�S�S is pressed, the unit will pause for about 2 seconds. � When the unit is set to E�A�S�S-off or -12 second mode, the quality of the sound will be better than E�A�S�S-48 second mode.
J
E�A�S�S
Resume function � K
Set the HOLD switch to RESUME.
appears, and you can start playback from the point where you stopped playback by pressing sSTOP/OFF/CHARGE. When the resume function is on, all-track repeat is selected automatically. To cancel resume play, set the HOLD switch to OFF.
Note
� Resume play may start at a point about 30 seconds behind or ahead the stopped point. Resume play may not operate if you stopped at the last 30 seconds of the final track. � Resume play will be canceled if you open the disc compartment. If the unit is turned off, resume play will not be canceled. In this case, be sure to set the HOLD switch to OFF before changing discs.
Random play � L
Press PLAY MODE in standby mode to display Tracks on the disc are played in random order. .
To cancel random play, press PLAY MODE in standby mode. display changes to .
Note
K
HOLD RESUME OFF
� You cannot back to previous track by pressing r during random play. � You cannot select one-track repeat during random play.
Repeat play � L
Press PLAY MODE during playback to select repeat play as follows. : one-track repeat B V : all-track repeat V no repeat play (normal play)
L
PLAY MODE
Note
When the unit is set to E�A�S�S-12 or -48 second mode, if PLAY MODE is pressed at the end of the track to select the other play mode, the unit may not change to the other mode properly.
CONNECTING TO AN EXTERNAL UNIT � M
