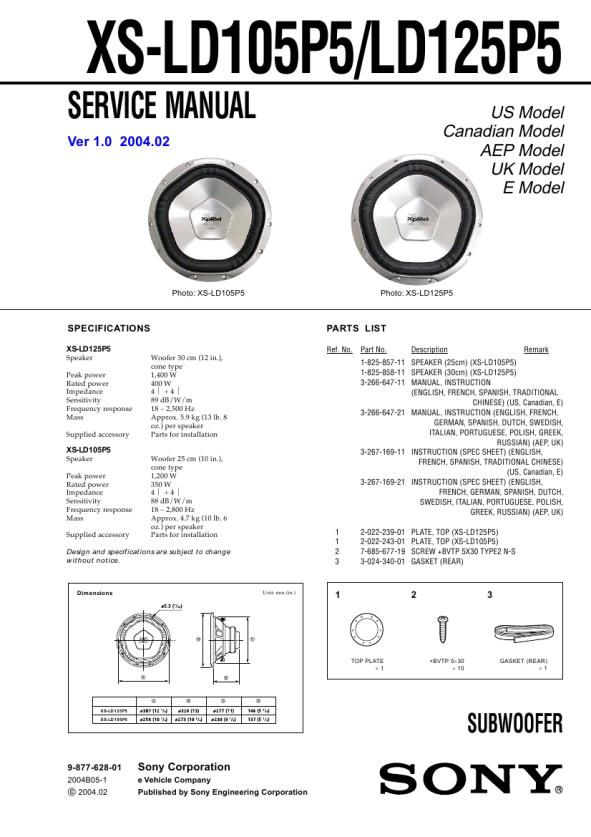

XS-LD105P5/LD125P5
SERVICE MANUAL
Ver 1.0 2004.02
US Model Canadian Model AEP Model UK Model E Model
Photo: XS-LD105P5
Photo: XS-LD125P5
SPECIFICATIONS
XS-LD125P5
Speaker Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessory Woofer 30 cm (12 in.), cone type 1,400 W 400 W 4�+4� 89 dB/W/m 18 � 2,500 Hz Approx. 5.9 kg (13 lb. 8 oz.) per speaker Parts for installation Woofer 25 cm (10 in.), cone type 1,200 W 350 W 4�+4� 88 dB/W/m 18 � 2,800 Hz Approx. 4.7 kg (10 lb. 6 oz.) per speaker Parts for installation
PARTS LIST
Ref. No. Part No. Description Remark
1-825-857-11 SPEAKER (25cm) (XS-LD105P5) 1-825-858-11 SPEAKER (30cm) (XS-LD125P5) 3-266-647-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, TRADITIONAL CHINESE) (US, Canadian, E) 3-266-647-21 MANUAL, INSTRUCTION (ENGLISH, FRENCH, GERMAN, SPANISH, DUTCH, SWEDISH, ITALIAN, PORTUGUESE, POLISH, GREEK, RUSSIAN) (AEP, UK) 3-267-169-11 INSTRUCTION (SPEC SHEET) (ENGLISH, FRENCH, SPANISH, TRADITIONAL CHINESE) (US, Canadian, E) 3-267-169-21 INSTRUCTION (SPEC SHEET) (ENGLISH, FRENCH, GERMAN, SPANISH, DUTCH, SWEDISH, ITALIAN, PORTUGUESE, POLISH, GREEK, RUSSIAN) (AEP, UK) 1 1 2 3 2-022-239-01 2-022-243-01 7-685-677-19 3-024-340-01 PLATE, TOP (XS-LD125P5) PLATE, TOP (XS-LD105P5) SCREW +BVTP 5X30 TYPE2 N-S GASKET (REAR)
XS-LD105P5
Speaker Peak power Rated power Impedance Sensitivity Frequency response Mass Supplied accessory
Design and specifications are subject to change without notice.
Dimensions
Unit: mm (in.)
1
2
3
B
C
TOP PLATE �1
A D
+BVTP 5�30 � 10
GASKET (REAR) �1
A
B
C
D
XS-LD125P5 XS-LD105P5
SUBWOOFER
Sony Corporation
e Vehicle Company Published by Sony Engineering Corporation
9-877-628-01
2004B05-1 C 2004.02
|
|
|
> |
|
