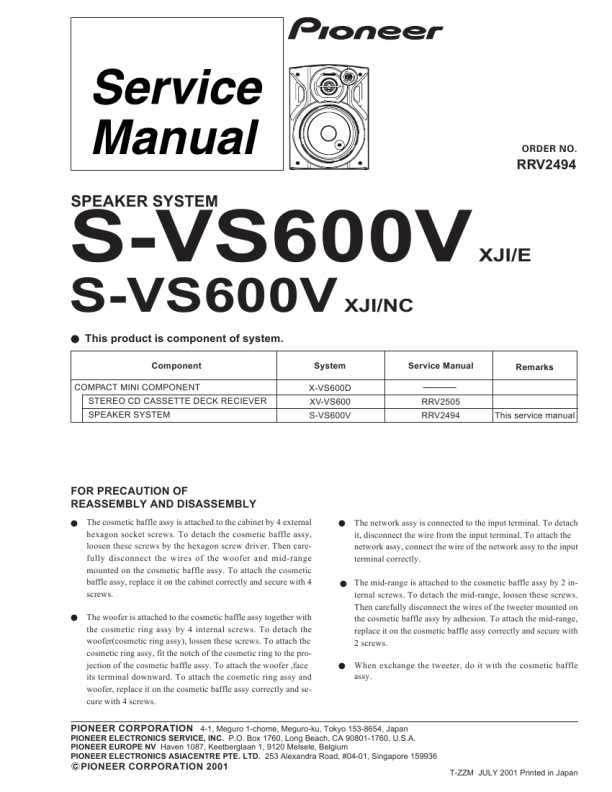

ORDER NO.
RRV2494
S-VS600V
S-VS600V
This product is component of system.
Component COMPACT MINI COMPONENT STEREO CD CASSETTE DECK RECIEVER SPEAKER SYSTEM System X-VS600D XV-VS600 S-VS600V RRV2505 RRV2494 Service Manual
SPEAKER SYSTEM
XJI/E
XJI/NC
Remarks
This service manual
FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
The cosmetic baffle assy is attached to the cabinet by 4 external hexagon socket screws. To detach the cosmetic baffle assy, loosen these screws by the hexagon screw driver. Then carefully disconnect the wires of the woofer and mid-range mounted on the cosmetic baffle assy. To attach the cosmetic baffle assy, replace it on the cabinet correctly and secure with 4 screws. The woofer is attached to the cosmetic baffle assy together with the cosmetic ring assy by 4 internal screws. To detach the woofer(cosmetic ring assy), lossen these screws. To attach the cosmetic ring assy, fit the notch of the cosmetic ring to the projection of the cosmetic baffle assy. To attach the woofer ,face its terminal downward. To attach the cosmetic ring assy and woofer, replace it on the cosmetic baffle assy correctly and secure with 4 screws. The network assy is connected to the input terminal. To detach it, disconnect the wire from the input terminal. To attach the network assy, connect the wire of the network assy to the input terminal correctly. The mid-range is attached to the cosmetic baffle assy by 2 internal screws. To detach the mid-range, loosen these screws. Then carefully disconnect the wires of the tweeter mounted on the cosmetic baffle assy by adhesion. To attach the mid-range, replace it on the cosmetic baffle assy correctly and secure with 2 screws. When exchange the tweeter, do it with the cosmetic baffle assy.
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION
PIONEER CORPORATION 2001
T-ZZM JULY 2001 Printed in Japan
|
|
|
> |
|
